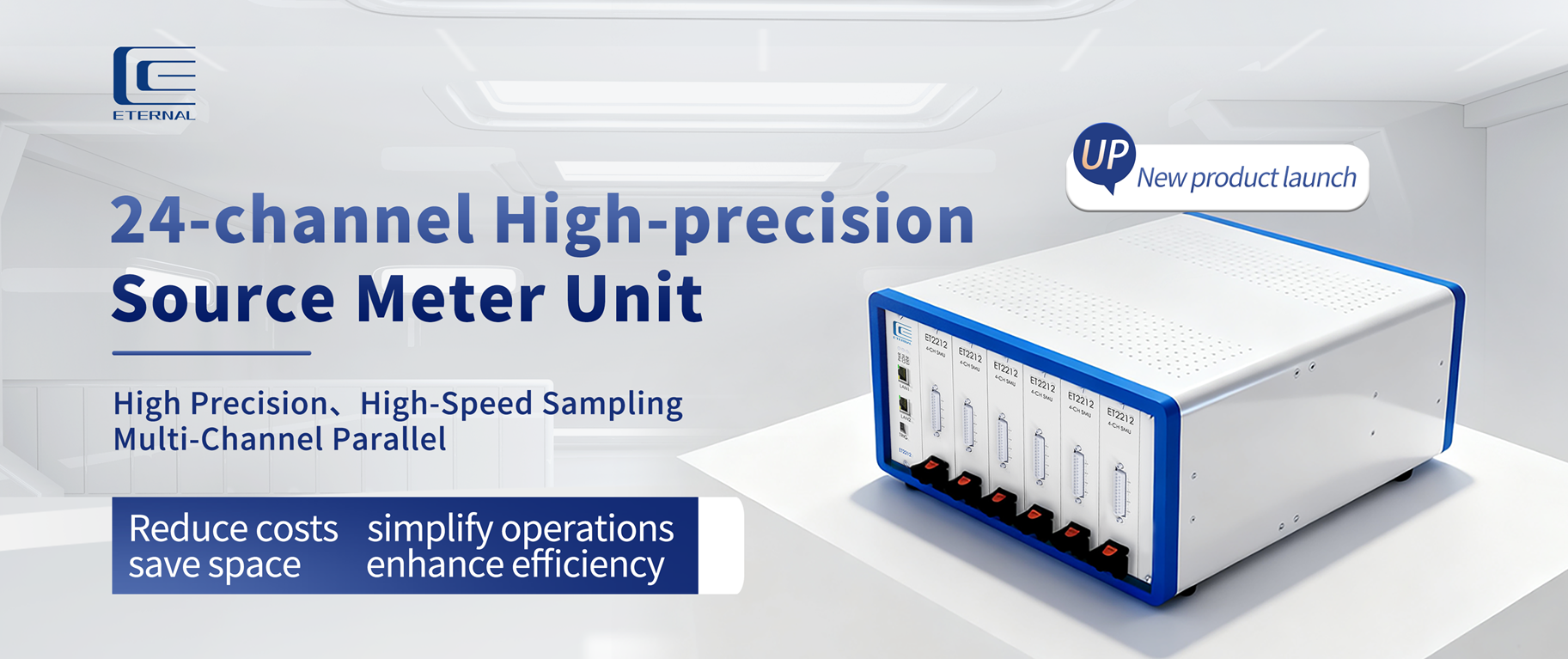

Breaking News! 24-channel High-precision Source Meter Unit Launched.
In the fields of semiconductor, silicon photonic PIC, and CPO packaging and testing, accuracy and efficiency have always been the core pursuit. Therefore, Yitiannuo officially launches the 24-channel High-precision Source Meter Unit : a compact, cost-effective, and efficient test instrument capable of simultaneously outputting and measuring voltage and current. This sourcemeter supports up to 24 channels for parallel testing, with isolated output for each channel. Each channel possesses DC output capabilities of ±10V and ±50mA, combining high resolution and high precision, making it widely applicable to various IV (current-voltage) power supply and measurement tasks.
Product Features
High-precision output: High-precision source and measurement integration, comparable to expensive analyzers
High-speed measurement: 500 kSPS high-speed sampling, capturing transient responses
Flexible connection: Supports 2-wire or 4-wire connections, adapting to different measurement scenarios
Multi-channel parallelism: 24-channel independent isolated output, parallel testing, doubling efficiency
Four-quadrant working mode: Flexible switching between source/load bidirectional testing
Wide temperature range stability: Temperature coefficient compensation (±0.15×accuracy specification/℃)
Technical Specifications
| |
| CH1~CH24, isolated output |
| ±10V, resolution 2μV, accuracy 0.03%+600μV |
| Measurement range: ±50mA to ±200μA, highest measurement resolution 50pA, accuracy 0.05% + offset |
| Content: ±50mA to ±200nA, setting resolution up to 100pA, accuracy 0.05% + offset |
| Single channel maximum 0.5W, 24 channels maximum 12W |
| ±(0.15×Accuracy Specification)/℃ (0℃~18℃ and 28℃~50℃) |
| Temperature: 0℃~+50℃ Humidity: 30%~70% RH |
| |
| |
Product Applications
![[Breaking News]24-channel High-precision Source Meter Unit Launched: Empowering Photonic Integration Testing!](/Private/NewsImgs/20260526/6391540628645680303827206.png "[Breaking News]24-channel High-precision Source Meter Unit Launched: Empowering Photonic Integration Testing!")

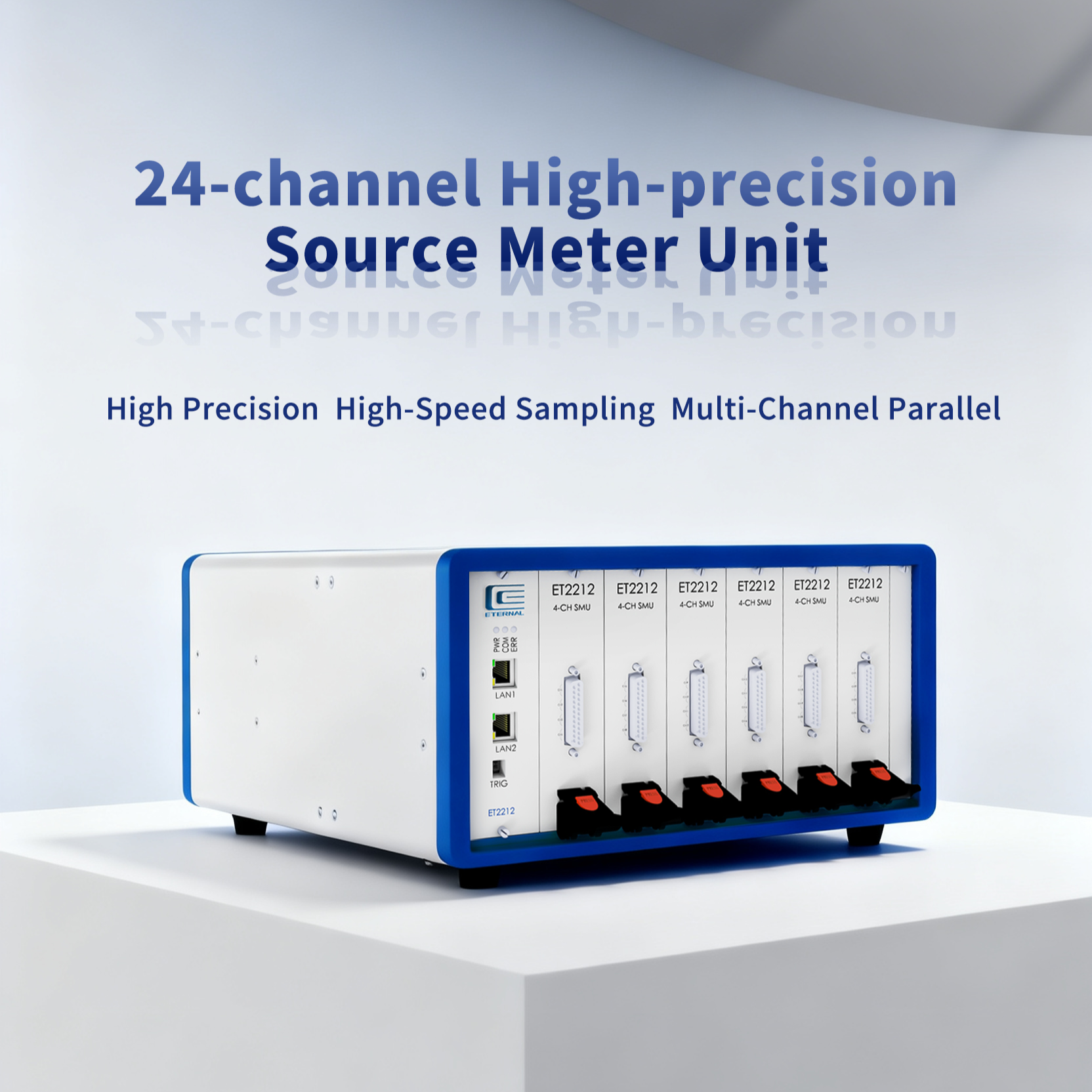

This product is particularly suitable for high-precision electrical testing requirements in optoelectronic testing. It supports multi-channel synchronous output, has a synchronous trigger function and four-quadrant operating mode, enabling fast IV characteristic analysis of the device under test. Multi-channel parallel testing significantly improves testing efficiency, meeting requirements for low cost, high precision, and high speed.
Limited-time benefit: Free 6-month trial for up to 5 customers
New Product Launch: 24-Channel Precision Sourcemeter Now Available - Yitianuo Offers Limited-Time Free Trial:
Trial period: 6 months (half a year)
Quota restriction: Only 5 customers allowed
Deadline: June 30, 2026
24-Channel Precision Source Meter, Intelligent and Safety Oriented, Open Connectivity, Seamless Integration, Redefining Multi-Channel IV Testing with High Density, High Precision, and Cost-effectiveness.
Welcome to call Yitian Nu for detailed specifications and trial opportunities.
